3100017

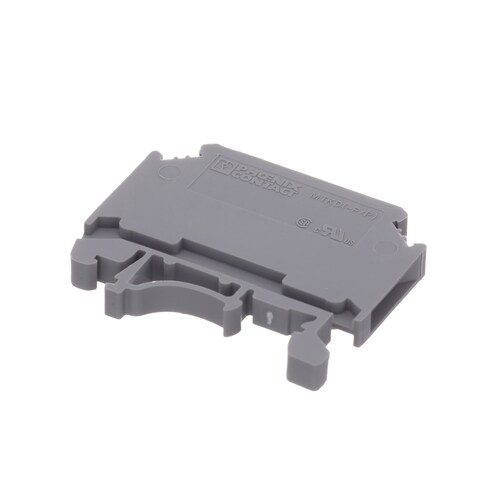

Name: Phoenix Contact 3100017
Brand: Phoenix Contact
SKU: 651-3100017
Price: 4.27 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

651-3100017

Mfr. No:

3100017

Mfr.:

Phoenix Contact

Description:

DIN Rail Terminal Blocks MTKD

Datasheet:

3100017 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 3100017

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 149

Expected 02/06/2026
Factory Lead Time:: 10

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,27 €	4,27 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	DIN Rail Terminal Blocks
RoHS:
Type:	Wire to Wire
Number of Positions:	1 Position
Current Rating:	16 A
Voltage Rating:	400 V
Connection Method:	Screw
Color:	Gray
Flammability Rating:	UL 94 V-0
Mounting Style:	DIN Rail
Wire Gauge Min:	24 AWG
Wire Gauge Max:	12 AWG
Length:	46.2 mm
Width:	5.2 mm
Height:	51.5 mm
Series:	MTKD
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PL
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 60 C
Product Type:	DIN Rail Terminal Blocks
Factory Pack Quantity:	50
Subcategory:	Terminal Blocks
Tradename:	CLIPLINE
Wire Gauge Range:	24 AWG to 12 AWG
Part # Aliases:	MTKD MTKD
Unit Weight:	8,787 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0


The housing has been modified due to the manufacturing process.
New injection molding tools will be implemented into the
process.
The marking area will be slightly changed and a date clock will
be stamped on the housing for improved traceability.

Please contact a Mouser Technical Sales Representative for
further information.

5-0316-01

Filter Document:

TARIC:: 8536901000
CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

Control Cabinet Solutions

Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost-effective products for applications. Ranging from power supplies and DIN-rail terminal blocks to relays, circuit breakers, lighting, and more, Phoenix Contact offers a single-source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, enabling the finished products to meet the highest requirements.

Terminal Blocks

Phoenix Contact offers an expansive selection of thousands of pluggable, DIN-rail, and fixed terminal blocks. In addition, Phoenix Contact has a broad range of terminal block accessories, including electronic housings, fuse blocks, markers, bridges and jumpers, and tools to meet the high demands of signal, data, and power connectivity applications.
