TDA7802

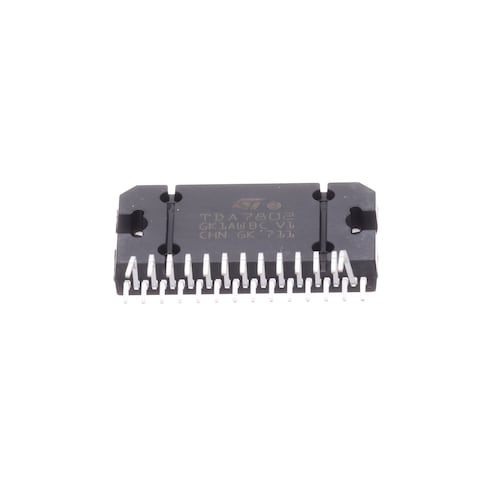

Name: STMicroelectronics TDA7802
Brand: STMicroelectronics
SKU: 511-TDA7802
Price: 9.59 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-TDA7802

Mfr. No:

TDA7802

Mfr.:

STMicroelectronics

Description:

Audio Amplifiers Quad 24-bit 110dB BCD LV High EFF Amp

Complete Your Design

Lifecycle:

End of Life:

Scheduled for obsolescence and will be discontinued by the manufacturer.

Datasheet:

TDA7802 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics TDA7802

In Stock: 250

Stock:: 250 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 250 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,59 €	9,59 €
	7,19 €	71,90 €
	6,84 €	171,00 €
	6,41 €	641,00 €
	6,13 €	1.532,50 €
	5,84 €	2.084,88 €
	5,80 €	6.211,80 €
2.856	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Audio Amplifiers
RoHS:
Class:	Other
Output Power:	72 W
THD plus Noise:	10 %
Package/Case:	Flexiwatt-27
Audio - Load Impedance:	2 Ohms
Supply Voltage - Min:	6 V
Supply Voltage - Max:	18 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Mounting Style:	Through Hole
Series:	TDA7802
Qualification:	AEC-Q100
Packaging:	Tube
Brand:	STMicroelectronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Input Type:	Digital
Number of Channels:	4 Channel
Product:	Audio Amplifiers
Product Type:	Audio Amplifiers
Factory Pack Quantity:	357
Subcategory:	Audio ICs
Type:	4-Channel Quad
Unit Weight:	7,108 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

TDA7802 Datasheet (PDF)

EOL

Product Discontinuation Notification 2025-8-11 (PDF)

PCN

Product Catalogs

High efficiency digital input quad power amplifier with built-in diagnostics features, 'start stop' (PDF)

CNHTS:: 8542319090
CAHTS:: 8542330000
USHTS:: 8542330001
JPHTS:: 8542330996
KRHTS:: 8532331000
MXHTS:: 8542330201
ECCN:: EAR99

TDA7802 Digital Input Quad Power Amplifier

STMicroelectronics TDA7802 Digital Input Quad Power Amplifiers feature advanced BCD technology and integrates a full digital-to-analog converter (DAC), digital input for direct connection to I²S (or TDM), and powerful MOSFET output stages. TDA7802 amplifiers offer enhanced sound quality and increased efficiency with a reduction of dissipated output power by up to 50% compared to conventional class AB solutions. These amplifiers play music down to 6V supply voltage, making it compatible with the "start-stop" battery profile recently adopted by some car makers. The integrated DAC allows the performance to reach a 115dB S/N ratio with more than 110dB of dynamic range. These amplifiers also integrate an innovative high-efficiency concept, optimized also for uncorrelated music signals making it ideal for simplifying thermal management in high power sets.
