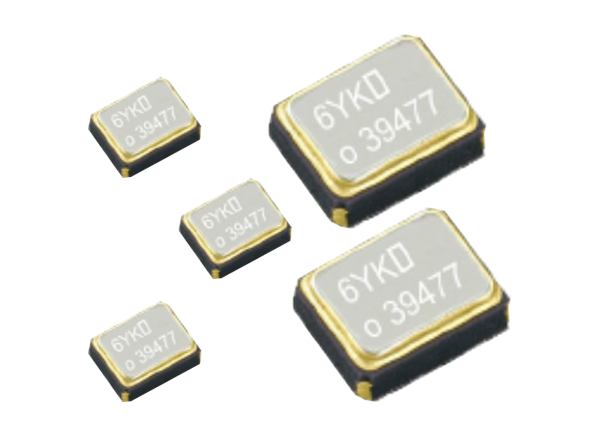

Epson TG2520 TCXOs

Epson TG2520 Temperature-Compensated Crystal Oscillators (TCXOs) come in a 2.5mm x 2mm x 0.8mm package and have a 10MHz to 55MHz frequency range. These oscillators feature low noise, stability down to ±0.5ppm, 1.7V to 3.63V voltage range, and -40°C to +85°C temperature range. Epson Timing TG2520 TCXO Oscillators are ideal for GPS and wireless communication devices, including LTE, Wi-Fi®, W-LAN, and IoT applications.


  • 2.5mm x 2mm x 0.8mm dimensions
  • 10MHz to 55MHz output frequency
  • Low noise
  • ±0.5ppm stability
  • 1.9V to 3.3V voltage range
  • -40°C to +85°C temperature range
  • Lead free
  • RoHS compliant


  • GPS and wireless communication devices
    • LTE
    • WiMAX
    • Wi-Fi
    • W-LAN
    • IoT
Published: 2020-08-12 | Updated: 2022-03-29
