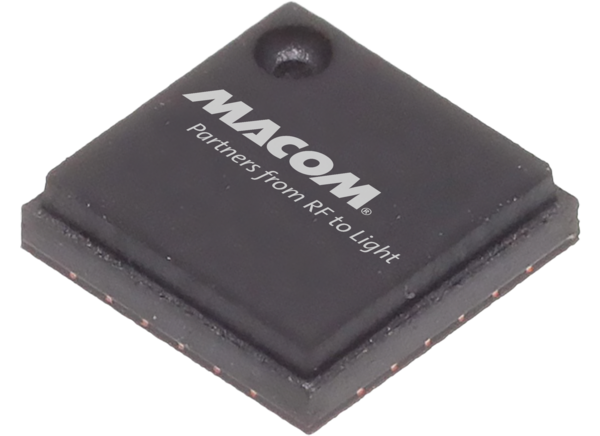

MACOM MAMX-011040 8-20GHz Image Reject Mixer
MACOM MAMX-011040 8-20GHz Image Reject Mixer is designed for a broad frequency range of 8-26GHz. The MACOM MAMX-011040 offers low conversion loss, high linearity, and excellent image rejection. The mixer supports a wide IF bandwidth of up to 4GHz and has a nominal LO drive of +14dBm. The device maintains exceptional conversion loss and image rejection performance even at a 10dBm LO drive. Its LO operating range spans from +10dBm to +18dBm, and the image-reject circuit ensures excellent port isolation. Additionally, the mixer simplifies application with its internal 50ohm matching.
Features
- Passive mixer, no bias required
- Usable as IR downconverter or as single sideband (SSB) upconverter
- Wideband 8-26GHz RF/LO range
- 8dB low conversion Loss
- Operates at a low LO level of +10dBm
- 10-18dBm LO power operating range
- Nominal LO drive of +14dBm
- 17dBm IIP3 high linearity
- 22dBc high image rejection
- DC to 4.0GHz wide IF bandwidth
- High isolation
- 4mm QFN 24-lead package size
- RoHS compliant
Applications
- Test and measurement
- Microwave radio
- Radar

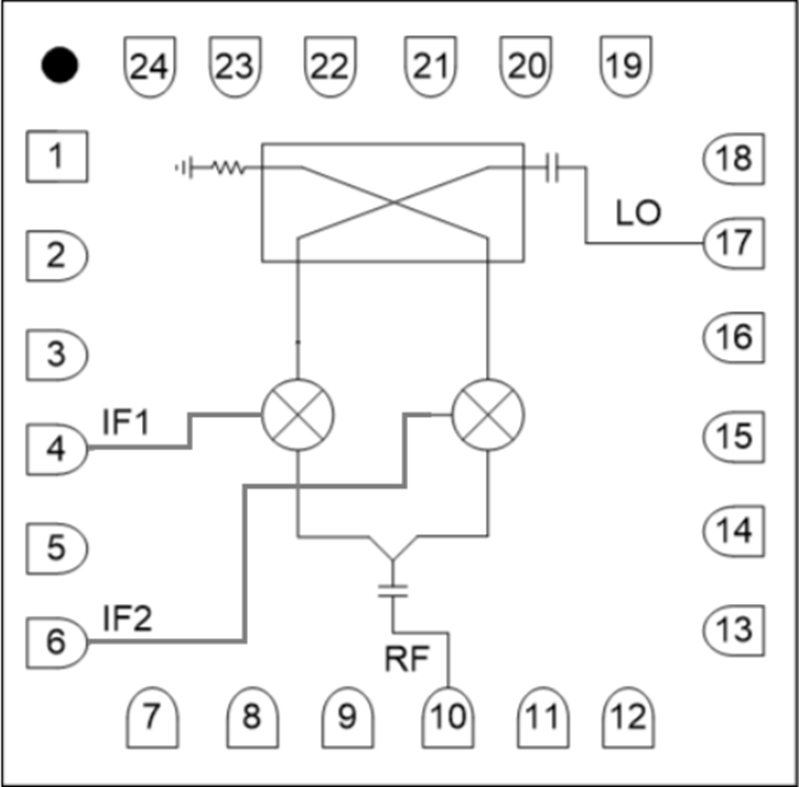

Functional Schematic
