Nexperia PMVxx P-Channel Trench MOSFETs

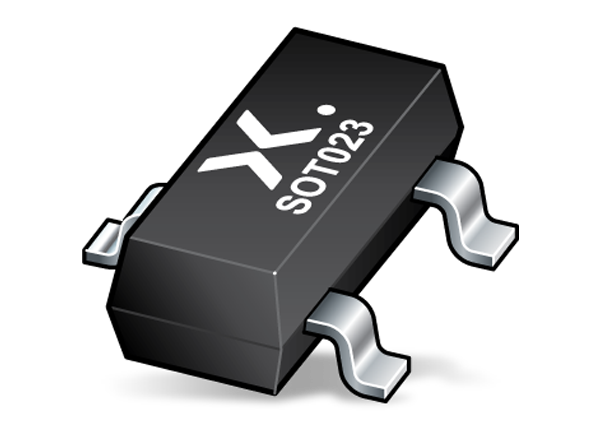

Nexperia P-Channel Trench MOSFETS are enhancement mode field-effect transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. They employ Trench MOSFET technology and offer a low threshold voltage and very fast switching. These MOSFETs are ideal for such applications as relay drivers, high-speed line drivers, low-side loadswitches, and switching circuits.

Features

  • Low threshold voltage
  • Very fast switching
  • Trench MOSFET technology
  • 2kV ESD protected
  • Low on-state resistance
  • Enhanced power dissipation capability of 1096mW
  • Enhanced power dissipation capability: Ptot= 1000mW

Applications

  • Relay driver
  • High-speed line driver
  • High-side load switch
  • Switching circuits

Related Products

Nexperia ASFETs for Repetitive Avalanche

40VDS to 60VDS max. drain-source voltage, 16ID to 40ID drain current, and 7.9QGD gate-drain charge.

Learn Moreabout Nexperia ASFETs for Repetitive Avalanche View Productsrelated to Nexperia ASFETs for Repetitive Avalanche

Nexperia Small-Signal MOSFETs (SSMOS) for Portables

Small WLCSP and leadless DFN packages for mobile and portable applications.

Learn Moreabout Nexperia Small-Signal MOSFETs (SSMOS) for Portables View Productsrelated to Nexperia Small-Signal MOSFETs (SSMOS) for Portables

Nexperia GAN041-650WSB Gallium Nitride (GaN) FET

Offers a 650V drain-source voltage, 47.2A drain current rating and 41mΩ maximum resistance.

Learn Moreabout Nexperia GAN041-650WSB Gallium Nitride (GaN) FET View Productsrelated to Nexperia GAN041-650WSB Gallium Nitride (GaN) FET

Nexperia BSH205G2 20V P-Channel Trench MOSFET

Enhancement mode field-effect transistor in a small SOT23 Surface-Mounted Device plastic package.

Learn Moreabout Nexperia BSH205G2 20V P-Channel Trench MOSFET View Productsrelated to Nexperia BSH205G2 20V P-Channel Trench MOSFET

Nexperia BSN20 60V N-Channel Trench MOSFET

Logic-level compatible, fast switching MOSFET suitable for high frequency applications.

Learn Moreabout Nexperia BSN20 60V N-Channel Trench MOSFET View Productsrelated to Nexperia BSN20 60V N-Channel Trench MOSFET
View Results ( 4 ) Page
Part Number Datasheet Id - Continuous Drain Current Rds On - Drain-Source Resistance Vgs th - Gate-Source Threshold Voltage Vgs - Gate-Source Voltage Qg - Gate Charge Pd - Power Dissipation
PMV33UPE,215 PMV33UPE,215 Datasheet 5.3 A 30 mOhms 950 mV - 8 V, + 8 V 14.7 nC 980 mW
PMV50XPR PMV50XPR Datasheet 4.4 A 48 mOhms 900 mV - 12 V, + 12 V 7.7 nC 1.096 W
PMV75UP,215 PMV75UP,215 Datasheet 3.2 A 77 mOhms 900 mV - 12 V, + 12 V 5 nC 1 W
PMV50XPAR PMV50XPAR Datasheet 3.6 A 60 mOhms 1 V - 10 V, + 10 V 7.7 nC 1.096 W
