STMicroelectronics STEVAL-CCA058V1 Training Kit
STMicroelectronics STEVAL-CCA058V1 Training Kit provides hands-on training with operational amplifiers (op-amps) and comparator-based analog circuits. The Training Kit in an academic context for student training or fast evaluation and prototyping of low-frequency op amp-based applications.

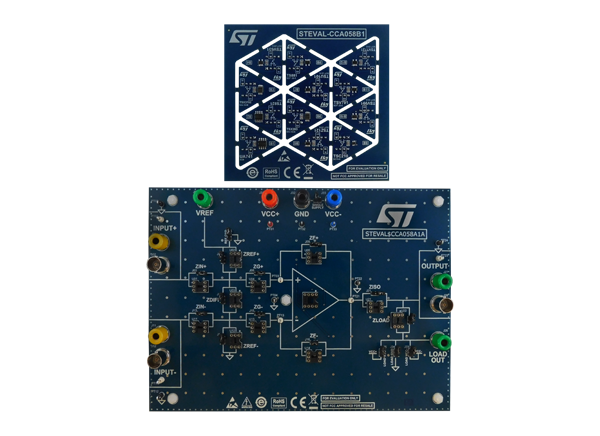

The STMicroelectronics STEVAL-CCA058V1 Training Kit consists of a Main Board and an Op-Amp Adapter Board. The Training Kit is configurable and features widely used op-amp schematics and applications. The onboard sockets accept op-amps and comparators with a single DIP-8 pinout.
The STEVAL-CCA058V1 Training Kit enables the user to experiment with the most common op-amp-based circuits. It also helps users choose the most suited op-amp for a custom application.
Features
- Schematics and applications based on operational amplifiers and comparators
- Accepts op-amps and comparators with a single DIP-8 pinout
- Follower, inverter, non-inverter
- Filters
- Low-side current sensing
- Photodiode trans-impedance amplification
- Low cost to high-performance low-voltage operational amplifiers
- Rail-to-rail
- High bandwidth
- Low offset
- High output current
- Low-power
Required Equipment
- Dual power supply stabilized, preferably with current limitation
- Function generator
- Multimeter
- Oscilloscope or any other waveform acquisition device
Featured Op-Amps
STMicroelectronics Operational Amplifiers (Op Amps)
Consists of high-performance, low-power, precision op-amps housed in tiny packages.
STMicroelectronics TSV99x/TSV99xA Operational Amplifiers
Single, dual, and quad op amps that offers low voltage operation and rail-to-rail input and output.
STMicroelectronics TSV79x High Bandwidth Rail-to-Rail Op-Amps
50MHz bandwidth unity-gain-stable amplifiers with a rail-to-rail input stage/slew rate of 30V/µs.
STMicroelectronics TSV7721/TSV7722/TSV7723 5V Operational Amplifiers
Single and dual 22MHz-bandwidth unity gain-stable amplifiers.
STMicroelectronics TSV63x Op Amps
Offers low voltage operation and rail-to-rail input and output.
STMicroelectronics TSU10x Nanopower Operational Amplifiers
Ultralow-power consumption combined with a supply voltage range of 1.5V to 5.5V.
Featured Comparators
STMicroelectronics TSX3702 CMOS Voltage Comparators
Exhibits a very low current consumption of 5μA typical per comparator.
STMicroelectronics TS88 Rail-To-Rail Nanopower Comparator
Ultra low supply current with rail-to-rail input and output capability.
Main Board

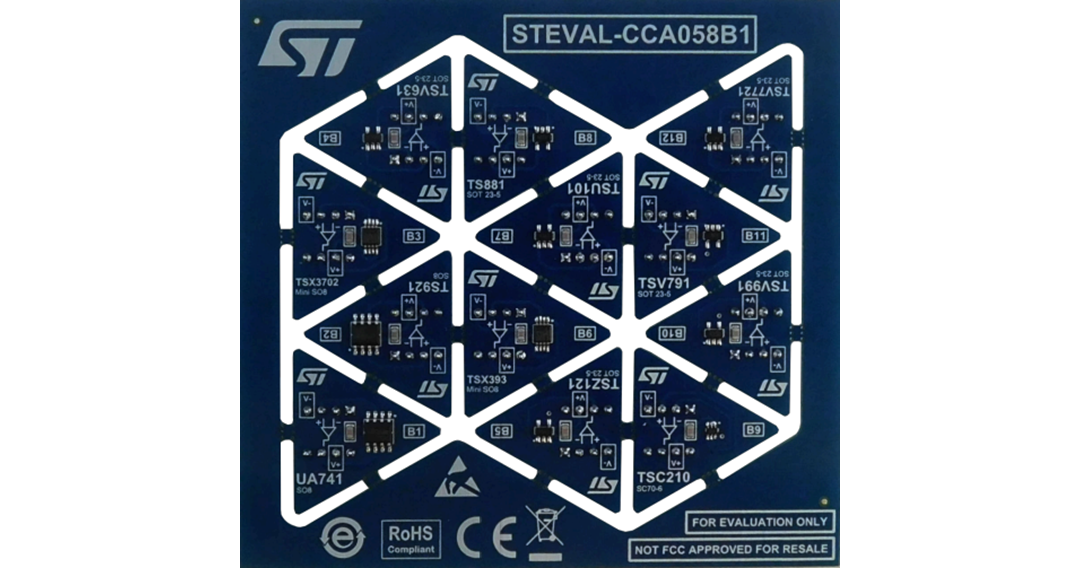

Op-Amp Adapter Board
