Texas Instruments LMK04832SEPEVM Evaluation Module

Texas Instruments LMK04832SEPEVM Evaluation Module is ideal for getting started on development with the LMK04832-SEP. The LMK04832-SEP is a space-grade, ultra-low-noise, JESD204B/C, dual-loop clock jitter cleaner. The TI LMK04832SEPEVM evaluation module features the LMK04832-SEP as an engineering model intended for engineering evaluation only. The LMK04832-SEP and LMK04832SEPEVM are unsuitable for qualification, production, radiation testing, or flight use.

Features

  • Single-event latch-up (SEL) and single-event functional interrupt (SEFI) immune >43MeV.cm2/mg
  • JESD204B/C support for space applications requiring system reference (SYSREF)
  • 6GHz external voltage-controlled oscillator (VCO) or distribution input
  • Multimode
    • Dual phase-locked loop (PLL)
    • Single PLL
    • Clock distribution
  • Complete circuit for dual-loop clock jitter cleaner, optimized and tested for performance

PCB Layout

Texas Instruments LMK04832SEPEVM Evaluation Module

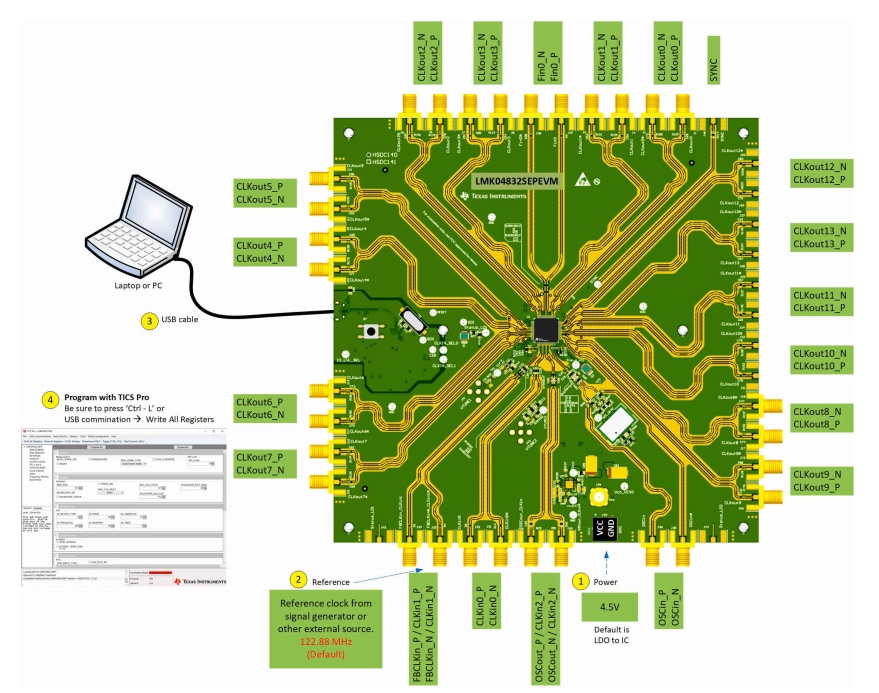

Quick Start

Texas Instruments LMK04832SEPEVM Evaluation Module
Published: 2022-12-08 | Updated: 2025-03-05
